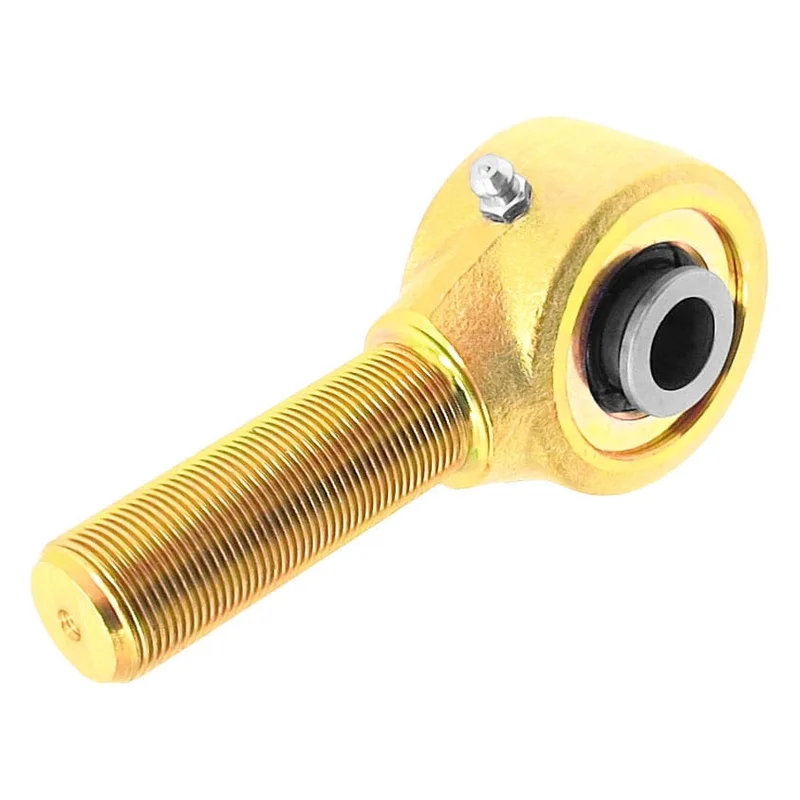

Johnny Joint Rod End, 2 in., Narrow Forged, 7/8 in.-14 RH Threads, 2.115 in. x .490 in. Ball, Externally Greased

Description

RockJock’s narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 7/8 in.-14 right hand threads on the shank, and a 2.115 in. mounting width ball with a .490 thru bolt hole. Finished in gold zinc plating.
