Carli 11-16 Ford F250/350 4X4 Xhd +2000Lbs Progressive Leaf Spring Kit – 1in Lift

Description

Carli Suspension

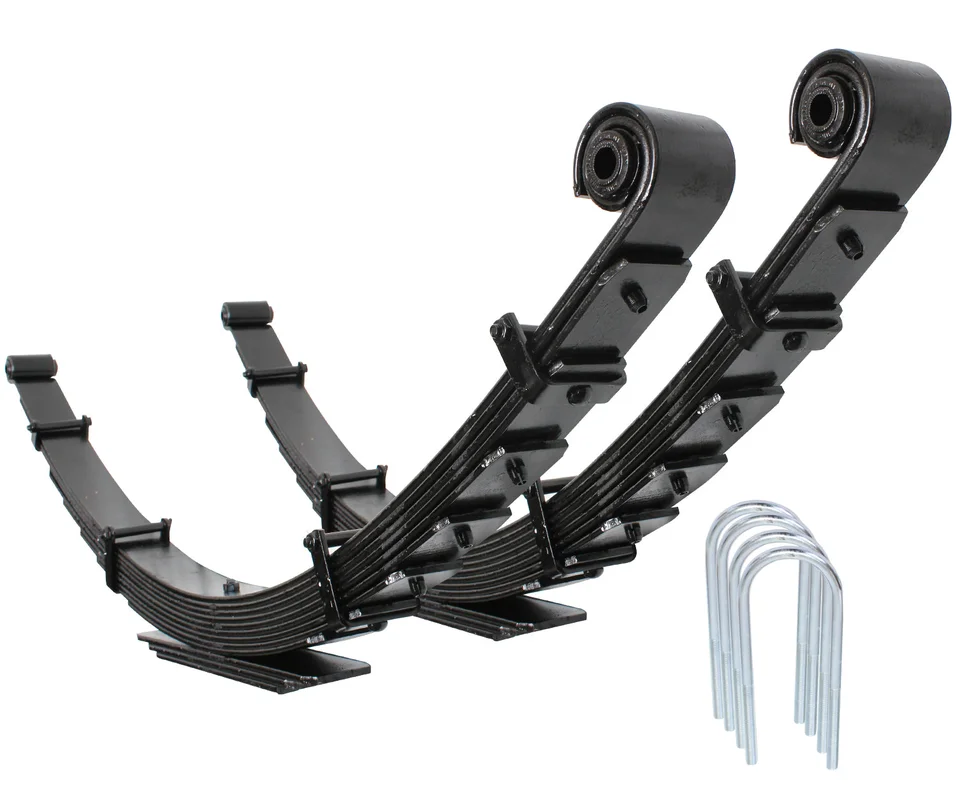

Carli XHD +2000 lbs Progressive Leaf Spring Kit – 2011–2016 Ford F250/F350 4×4 – 1″ Lift

The Carli XHD Full Replacement Leaf Spring Kit is designed for trucks running a constant 2,000 lb bed load, making it ideal for heavy-duty work trucks, overland builds, and camper setups requiring increased rear support. Engineered to deliver improved ride quality and control under load, this progressive spring pack enhances stability while maintaining usable suspension travel. These springs are not intended for unloaded use and require the constant weight to achieve proper ride height and performance.

Developed through real-world overland and camper applications, including builds like The Fast Lane Truck’s “No Pavement Needed” series, the XHD spring pack bridges the gap between standard HD and extreme-duty setups. Due to the increased spring rate and elevated center of gravity, Carli requires pairing this system with their Pintop (King 2.5″) shock package featuring custom tuning for optimal ride quality and handling.

Key Features:

• Designed for constant 2,000 lb bed load applications

• Ideal for work trucks, campers, and overland builds

• Full progressive, block-eliminating leaf spring pack

• Provides approximately 1″ of lift with slight rear-high stance

• Improves ride quality, handling, and load stability

• Includes new U-bolts and rear bump stop drop spacers

• Enhances suspension travel and control under load

Notes:

• Not designed for unloaded driving conditions

• Requires approximately 2,000 lbs constant load for proper performance

• Pintop (King 2.5″) shock package with custom tuning is required

• Compatible with 3.5″ axle tube diameter

• Designed for high center of gravity applications

Vehicle Fitment:

• 2011–2016 Ford F-250 Super Duty

• 2011–2016 Ford F-350 Super Duty

SKU: CS-FFSP-LVL-11-XHD
